Coil Plate

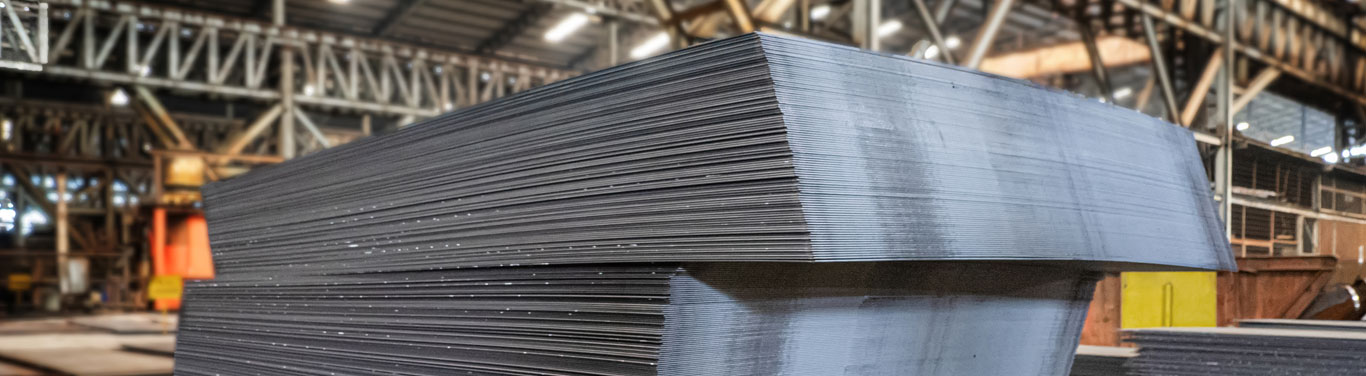

We produce Steel Coil Plate with our proprietary technology to guarantee the best quality product results. Our Coil Plate comes with a variety of standards and sizes that can be tailored to your needs. GRP uses equalizing process to produce highest standard of coil plate, This industry leading standard produces a quality steel plate that is consistently flat.
Standard Spec : A36,SS400, A283, EN 10025 Gr.235 JR, A572Gr50.
Size : 2.0 – 12 mm (thickness)
width : 900 – 1524 mm
Production Capacity : 360.000 Mtpy Max (Part of HRC product)
High Strength Steel YS>300 Mpa
|
SPECIFICATION |
GRADE |
Prod. Thick (mm) |
M E C H A N I C A L P R O P E R T I E S |
||||
|---|---|---|---|---|---|---|---|
|
TENSILE TESTING |
IMPACT TESTING (CVN) |
||||||
|
YS (MPa) |
TS (MPa) |
EL (%) |
LG |
TR |
|||
|
ASTM A 131 / ASME SA 131 |
AH36 |
6 - 10 |
355 |
490 - 620 |
19 |
0°C (27 Joule ) |
0°C (24 Joule) |
|
DH36 |
6 - 10 |
355 |
490 - 620 |
19 |
-20°C (27 Joule ) |
-20°C (24 Joule ) |
|
|
EH36 |
6 - 10 |
355 |
490 - 620 |
19 |
-40°C (27 Joule焦耳) |
-40°C (24 Joule) |
|
|
AH40 |
6 - 10 |
390 |
510 - 650 |
19 |
0°C (39 Joule) |
0°C (26 Joule) |
|
|
DH40 |
6 - 10 |
390 |
510 - 650 |
19 |
-20°C (39 Joule) |
-20°C (26 Joule) |
|
|
EH40 |
6 - 10 |
390 |
510 - 650 |
19 |
-40°C (39 Joule) |
-40°C (26 Joule) |
|
|
ASTM A 572 / ASME SA 527 |
50 |
6 - 10 |
345 |
450 |
18M |
- |
- |
|
55 |
6 - 10 |
380 |
485 |
17M |
- |
- |
|
|
60 |
6 - 10 |
415 |
520 |
16M |
- |
- |
|
|
ASTM A 573 / ASME SA 573 |
70 |
6 - 10 |
290 |
485 - 620 |
18R |
- |
- |
|
JIS G 3101 |
SS 490 |
6 - 10 |
285 |
490 - 610 |
15 |
- |
- |
|
SS 540 |
6 - 10 |
400 |
540 |
13 |
- |
- |
|
|
JIS G 3106 |
SM 490 A |
6 - 10 |
325 |
490 -610 |
17 |
- |
- |
|
SM 490 B |
6 - 10 |
325 |
490 -610 |
17 |
0°C (27 Joule) |
- |
|
|
SM 490 C |
6 - 10 |
325 |
490 -610 |
17 |
0°C (47 Joule) |
- |
|
|
SM 490 YA |
6 - 10 |
365 |
490 -610 |
15 |
- |
- |
|
|
SM 490 YB |
6 - 10 |
365 |
490 -610 |
15 |
0°C (27 Joule) |
- |
|
|
SM 520 B |
6 - 10 |
365 |
520 - 640 |
15 |
0°C (27 Joule) |
- |
|
|
SM 520 C |
6 - 10 |
365 |
520 - 640 |
15 |
0°C (47 Joule) |
- |
|
|
BS 4360 |
50 B |
6 - 10 |
355 |
490 - 640 |
18C |
+20°C (27 Joule) |
- |
|
50 C |
6 - 10 |
355 |
490 - 640 |
18C |
0°C (27 Joule) |
- |
|
|
50 D |
6 - 10 |
355 |
490 - 640 |
18C |
-20°C (47 Joule) |
- |
|
|
50 DD |
6 - 10 |
355 |
490 - 640 |
18C |
-30°C (47 Joule) |
- |
|
|
EN 10025-2 / |
S 355 JR |
6 - 10 |
355 |
470 - 630 |
20 |
+20°C (27 Joule) |
- |
|
S 355 J0 |
6 - 10 |
355 |
470 - 630 |
20 |
0°C (27 Joule) |
- |
|
|
S 355 J2 |
6 - 10 |
355 |
470 - 630 |
20 |
-20°C (47 Joule) |
- |
|
|
CSA G40.21 (1998) |
350 W (50 W) |
6 - 10 |
350 |
450 - 650 |
17 |
- |
- |
|
400 W (60 W) |
6 - 10 |
400 |
520 - 690 |
13 |
- |
- |
|
|
1E-1863 |
6-100 |
345 -500 |
450 |
16 |
-29°C (11 Joule) |
- |
|
PRESSURE VESSEL STEEL
|
SPECIFICATION |
GRADE |
Prod. Thick (mm) |
M E C H A N I C A L |
||
|---|---|---|---|---|---|
|
TENSILE TESTING |
|||||
|
YS (MPa) |
TS (MPa) |
EL (%) |
|||
|
ASTM A 516 / ASME SA 516 |
55 |
6 - 10 |
205 |
380 - 515 |
23 |
|
60 |
6 - 10 |
220 |
415 - 550 |
21 |
|
|
65 |
6 - 10 |
240 |
450 - 585 |
19 |
|
|
70 |
6 - 10 |
260 |
485 - 620 |
17 |
|
|
ASTM A 572/ ASME SA 527 |
B |
4 - 12 |
185 |
345 - 485 |
25 |
|
C |
4 - 12 |
205 |
380 - 515 |
23 |
|
|
JIS G 3101 |
SG 255 |
2 - 4 |
255 |
400 |
28 |
|
SG 295 |
2 - 3 |
295 |
440 |
26 |
|
WEATHER RESISTANT STEEL / Atmospheric Corrosion Resistance
|
SPECIFICATION |
GRADE |
Prod. Thick (mm) |
M E C H A N I C A L |
||
|---|---|---|---|---|---|
|
PROPERTIES |
|||||
|
YS (MPa) |
TS (MPa) |
EL (%) |
|||
|
ASTM A 242 / ASME SA 242 |
- |
6 - 10 |
345 |
480 |
18 |
SHIP-BUILDING STEEL
|
SPECIFICATION |
GRADE |
Prod. Thick (mm) |
M E C H A N I C A L P R O P E R T I E S |
||||
|---|---|---|---|---|---|---|---|
|
TENSILE TESTING |
IMPACT TESTING (CVN) |
||||||
|
YS (MPa) |
TS (MPa) |
EL (%) |
LG |
TR |
|||
|
Certified by LR, ABS, BV, BKI, & DNV GL |
AH36 |
6 - 10 |
355 |
490 - 620 |
19 |
0°C (27 Joule) |
0°C (24 Joule) |
|
DH36 |
6 - 10 |
355 |
490 - 620 |
19 |
-20°C (27 Joule) |
-20°C (24 Joule) |
|
|
EH36 |
6 - 10 |
355 |
490 - 620 |
19 |
-40°C (27 Joule) |
-40°C (24 Joule) |
|
|
AH40 |
6 - 10 |
390 |
510 - 650 |
19 |
0°C (39 Joule) |
0°C (26 Joule) |
|
|
DH40 |
6 - 10 |
390 |
510 - 650 |
19 |
-20°C (39 Joule) |
-20°C (26 Joule) |
|
|
EH40 |
6 - 10 |
390 |
510 - 650 |
19 |
-40°C (39 Joule) |
-40°C (26 Joule) |
|
|
A |
5-12 |
235 |
400 - 520 |
21 |
- |
- |
|
|
B |
5-12 |
235 |
400 - 520 |
21 |
0°C (27 Joule) |
0°C (20 Joule) |
|
|
D |
5-12 |
235 |
400 - 520 |
21 |
-20°C (27 Joule) |
-20°C (20 Joule) |
|
|
E |
5-12 |
235 |
400 - 520 |
21 |
-40°C (27 Joule) |
-40°C (20 Joule) |
|
AVAILABLE SIZE
|
MILD STEEL |
Maximum Length (mm) |
|||
|---|---|---|---|---|
|
Thickness Range (mm) |
Width Range (mm) |
|||
|
900 - 1070 |
1070 -1219 |
1219 - 1524 |
||
|
2 - 3 |
4000 |
4000 |
- |
|
|
3 - 4.5 |
6000 |
6000 |
- |
|
|
4.5 - 6 |
12000 |
12000 |
12000 |
|
|
6 - 8 |
12000 |
12000 |
12000 |
|
|
8 - 9 |
12000 |
12000 |
12000 |
|
|
9 - 12 |
12000 |
12000 |
12000 |
|
|
*Minimum Length 2000 mm |
||||
|
HIGH STRENGTH STEEL |
Maximum Length (mm) |
|||
|---|---|---|---|---|
|
Thickness Range (mm) |
Width Range (mm) |
|||
|
900 - 1070 |
1070 -1219 |
1219 - 1524 |
||
|
6 - 8 |
12000 |
12000 |
12000 |
|
|
8 - 9 |
12000 |
12000 |
12000 |
|
|
9 - 10 |
12000 |
12000 |
12000 |
|
|
*Minimum Length 2000 mm |
||||
